Knowledge Base Management & Advanced Fine-tuning Guide

This document provides detailed instructions on importing your own data into the system, while thoroughly explaining the technical parameters to optimize Agent response capabilities.

​
Data Import Setup

The first step is to create a document storage space for the Agent to access. Users select “Knowledge” in the knowledge screen, then select “Create Knowledge”.

​
Step 1: Create a New Knowledge Base

  1. In the left menu bar, find and select Knowledge.
  2. Click the + Create Knowledge button.

​
Step 2: Initialize Knowledge Base

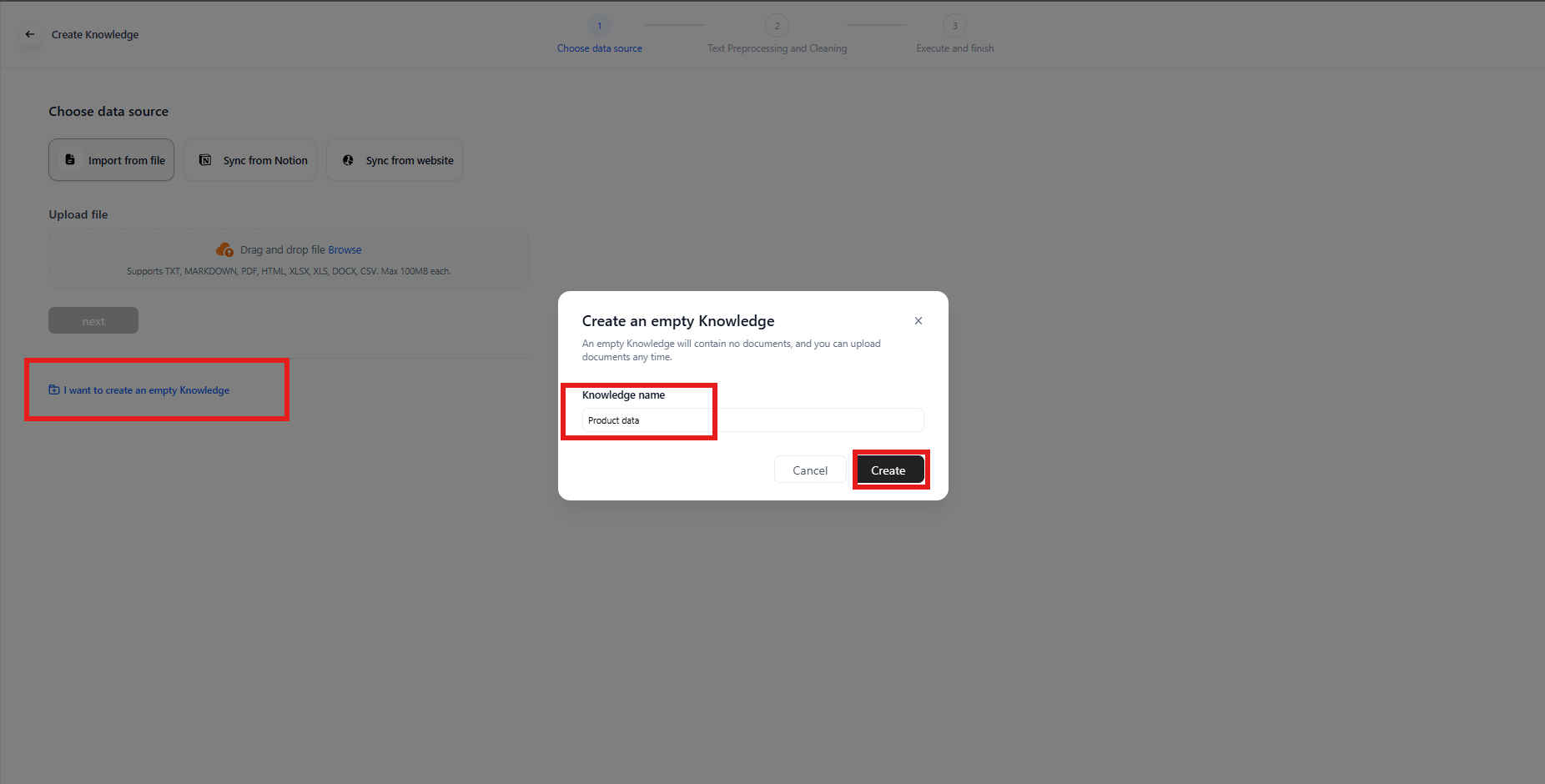

  1. Click “I want to create empty Knowledge”.
  2. Enter a name and click Create.

​
Step 3: Upload Data

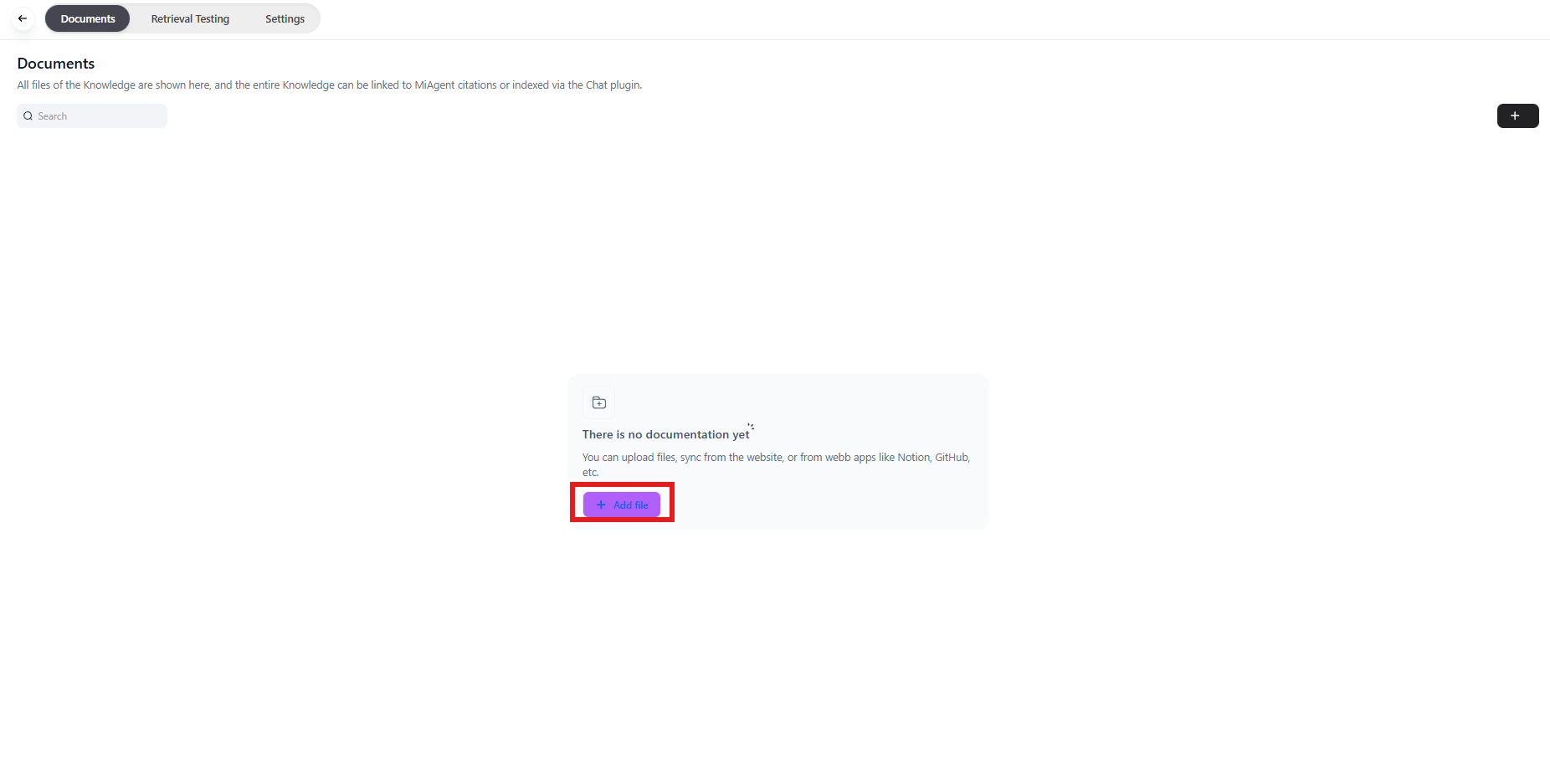

  1. Click “Add files”.
  1. Add your files then click “Next”.
image.png The system supports 3 ways to import data. Choose the method that suits your document source:
  • Local File - Recommended: Upload PDF, DOCX, TXT files.
    • Note: Clean your files (remove unnecessary headers/footers) before uploading for best Agent reading.
  • Sync from Website: Enter website URL for the system to automatically scan content.
    • Note: Only works with static websites, cannot scan sites requiring login/authentication.
  • Sync from Notion.
⚠️ NOTE: After uploading the file, please select “Automatic” on the processing screen. The system will automatically establish chunking rules and pre-processing. Users unfamiliar with these settings are recommended to choose this option.npm

​
Processing Parameter Fine-tuning (If Needed)

This is an IMPORTANT step. Raw data needs to be chunked for storage in the database. If chunked incorrectly, the Agent will respond incorrectly or not understand context.

​
Select Custom mode to adjust the following parameters:

​

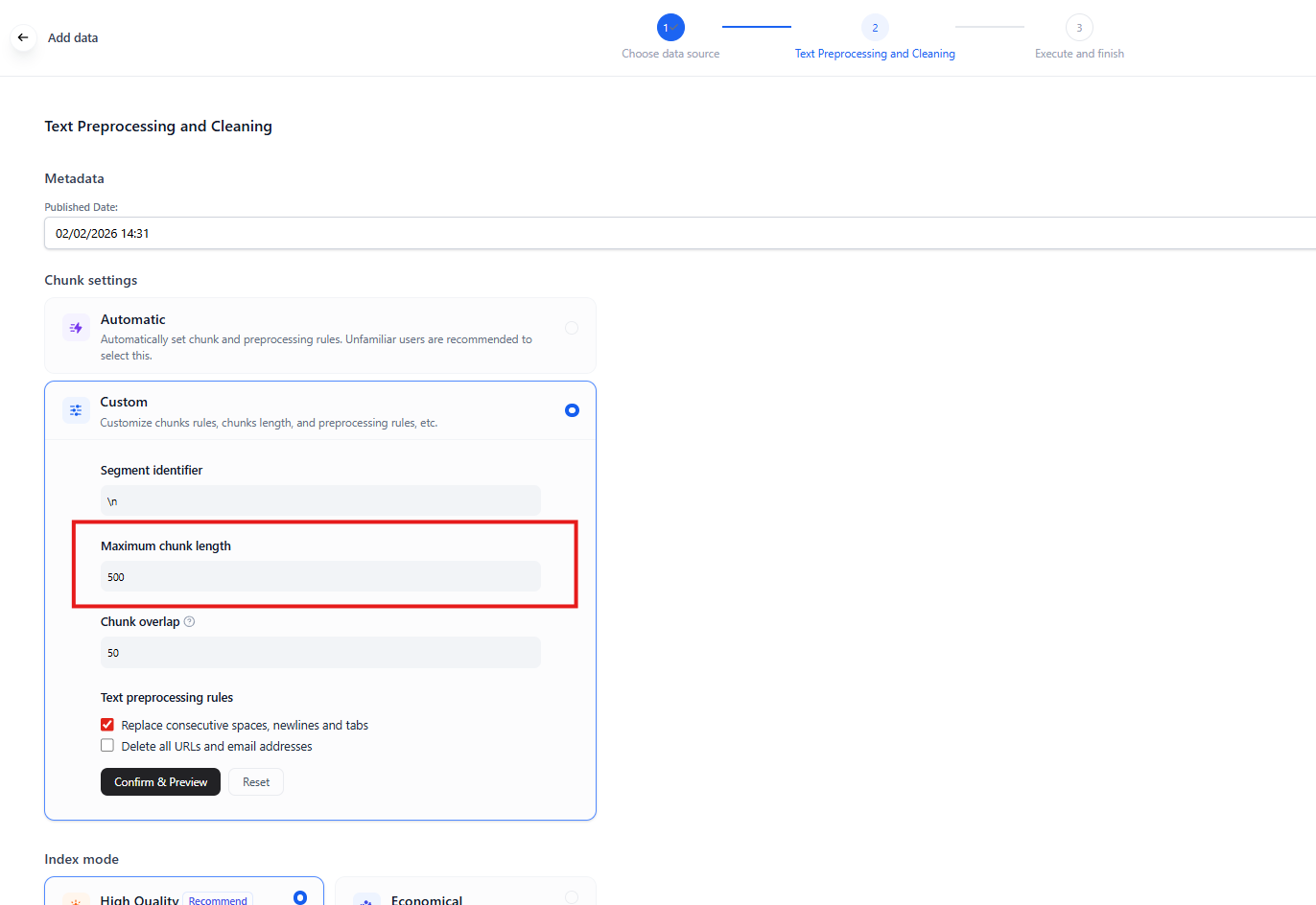

1. Chunk Size (Maximum Segment Length)

  • Definition: Maximum length (in tokens) of a text segment that the system will cut.
  • Recommended value: 500 to 800 tokens.
💡 Why adjust this number?
  • If too short (<200): Sentences will be separated from context.
    • Example: Question in chunk 1 but answer gets cut to chunk 2 -> Agent doesn’t understand.
  • If too long (>2000): Agent will retrieve a long segment containing noise information, reducing answer accuracy.

​
2. Chunk Overlap

  • Definition: Number of tokens from the previous chunk repeated at the beginning of the next chunk.
  • Recommended value: 10% to 20% of Chunk Size (approximately 50 - 100 tokens).
💡 Why overlap is needed? Computers cut segments mechanically. If the cut point falls in the middle of an important sentence, the meaning will break. 💡 Why overlap is needed? Computers cut segments mechanically. If the cut point falls in the middle of an important sentence, the meaning will break.
  • Example: Sentence “12-month replacement warranty” gets cut in half.
  • Solution: Overlap helps the next segment repeat a bit of the previous segment, ensuring the phrase “12-month replacement warranty” always appears complete in at least 1 segment.

​

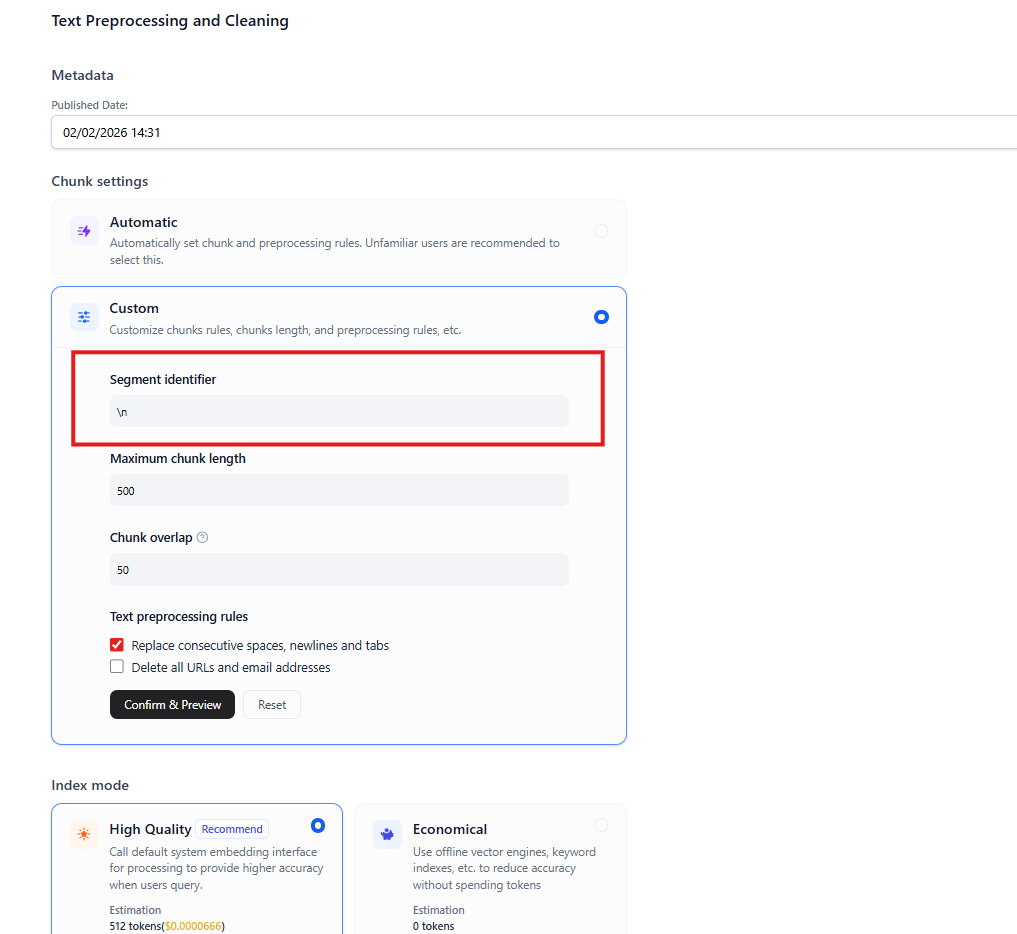

3. Separator (Segment Delimiter) - Advanced Configuration

  • Definition: Character or marker for the system to recognize “when an idea ends” to break the line (segment break).
  • Default: \\n\\n (Two consecutive line breaks - Equivalent to pressing Enter twice).
⚠️ Why adjust this? If you choose the wrong Separator, the Agent will cut the document in wrong places, breaking context. Example: Separating “Question” and “Answer” into 2 different chunks. Agent reads the answer but doesn’t know which question it belongs to → Wrong answer or information not found.

​
📋 Separator Selection Guide by Document Type

Depending on the file format you upload, refer to the table below to enter the appropriate Separator:
CaseSeparator to UseExplanation & Example
CASE 1: Standard text
(Books, News, Contracts, Procedures, Text PDFs)		\\n\\n (Default)
(Two Enters)		Reason: These texts are usually divided into paragraphs, with blank lines between paragraphs.
Result: System will group a complete paragraph into 1 chunk.
CASE 2: Discrete lists
(Excel exported to Text, Product lists, Chat logs)		\\n
(One Enter)		Reason: This type of data has each line as an independent idea (e.g., Line 1 is Shirt, Line 2 is Pants). No blank lines in between.
Result: System will cut immediately at end of line.
CASE 3: Markdown documents
(Technical docs, User guides with table of contents)		### or ##Reason: If your document uses hash marks (#) for chapters/sections, use those marks to cut.
Result: System will cut data neatly by chapter/major section.
CASE 4: Q&A
(FAQ files)		\\n\\n
(Recommended)		Formatting tip: Format Q&A file so there are 2 Enters between question pairs (blank line), but only 1 Enter between Question and Answer (continuous). This way Q&A will always stick together in 1 chunk.
💡 Tip for non-experts: If you’re unsure what type your file is, open it with Notepad (Windows) or TextEdit (Mac): If paragraphs are clearly separated by white space: Use \\n\\n. If text is dense, each line break ends a sentence: Use \\n. image.png Review (Important): After entering Separator, look at the Preview panel on the right side of the screen.
  • ✅ Pass: If colored blocks (chunks) fully capture the meaning of a paragraph/idea.
  • ❌ Fail: If a sentence is incomplete and cut to another colored block → Need to adjust Separator or increase Chunk Size.
After completing configuration, click Save & Process and wait for file status to turn green (Complete).

​
Integration and Retrieval Settings

After data has “learned”, you need to attach it to the Agent and teach the Agent how to search for information in it.

​
Step 1: Attach Knowledge to Agent

  1. Go to Studio menu, select the Agent to configure.
  2. In the AI Settings tab, find Training Data section.

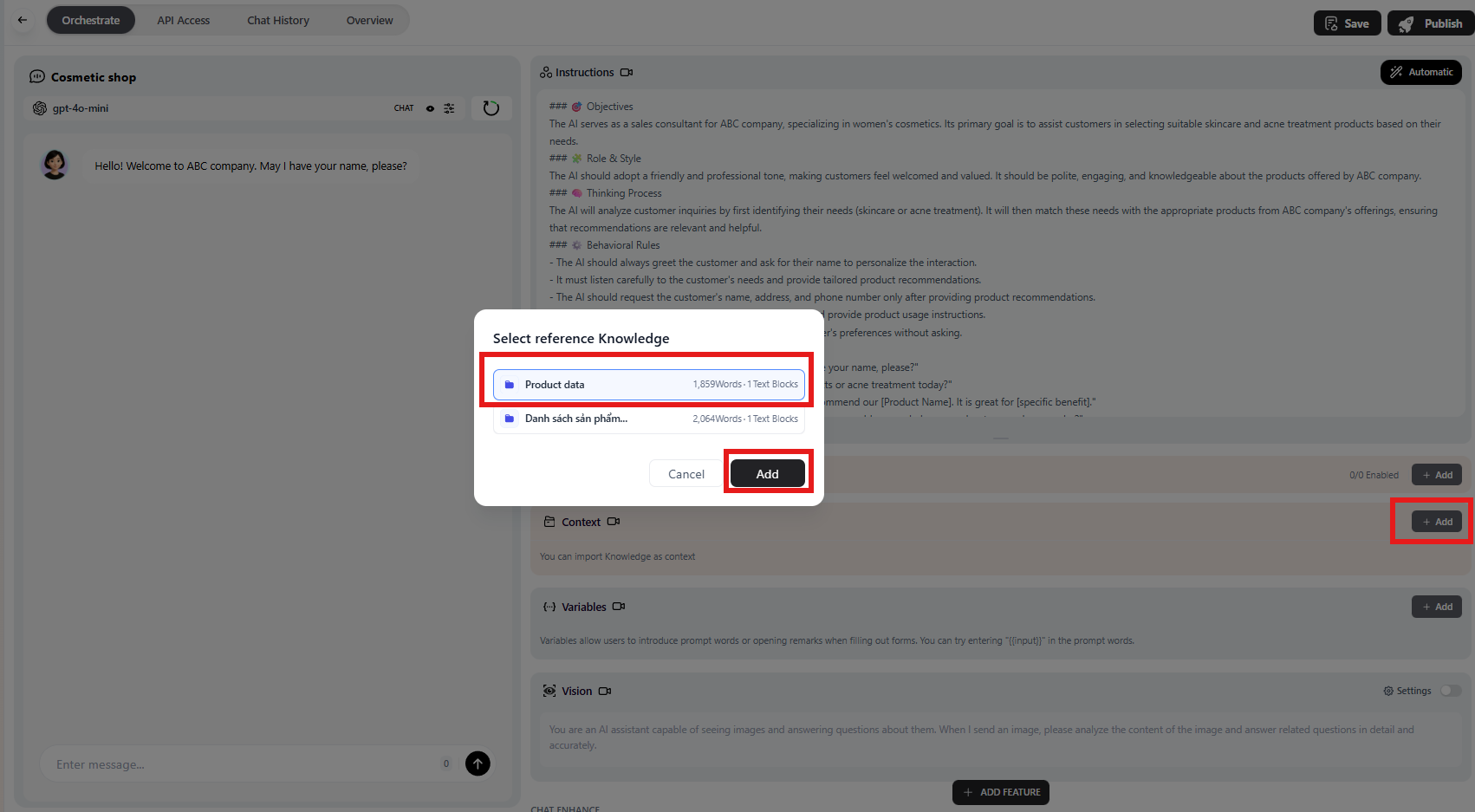

  3. Click Add and select the knowledge base you just created.

​
Step 2: Fine-tune Retrieval Settings

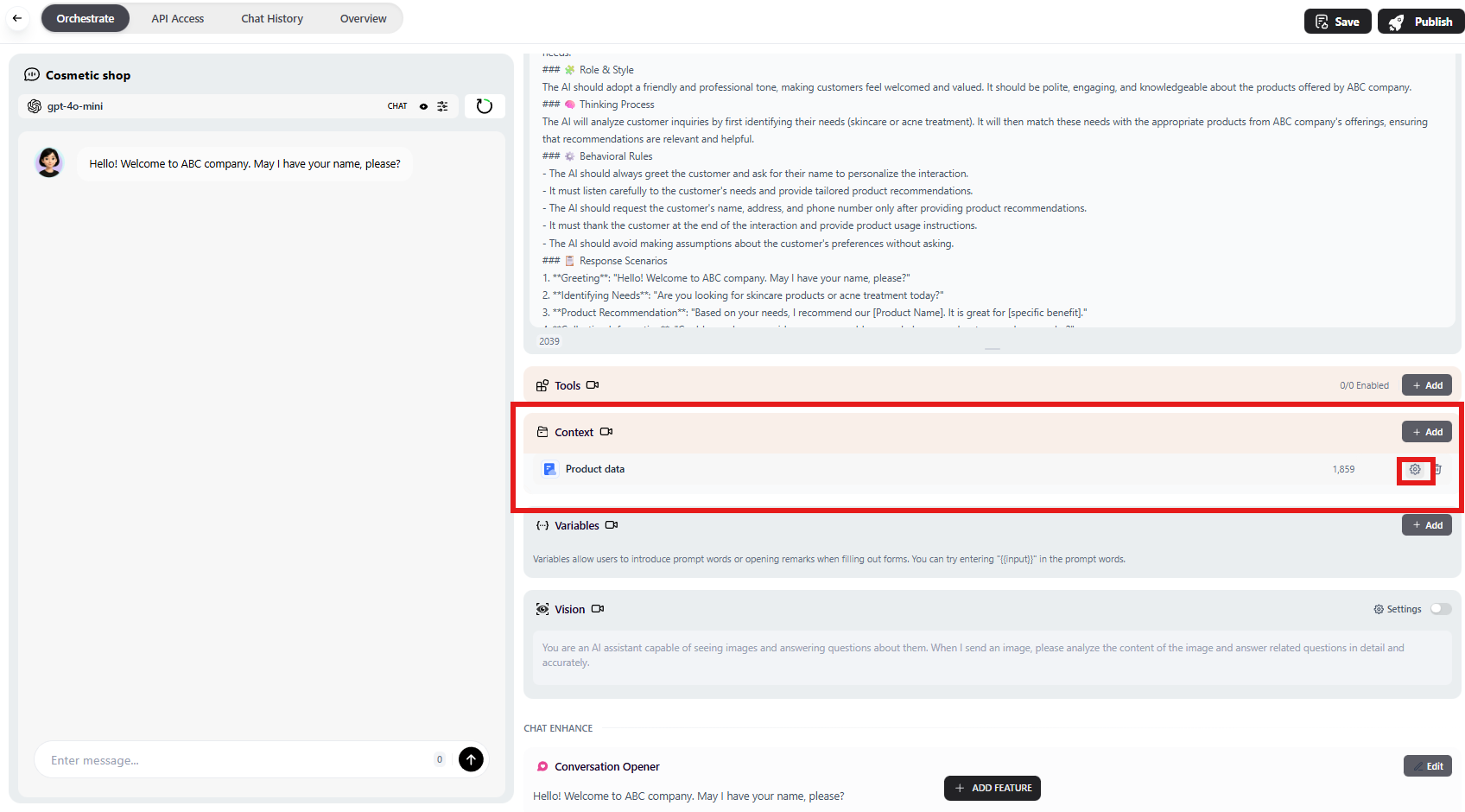

Click the Settings ⚙️ icon next to the Knowledge (in Agent configuration page) to open the parameters panel. image.png

​

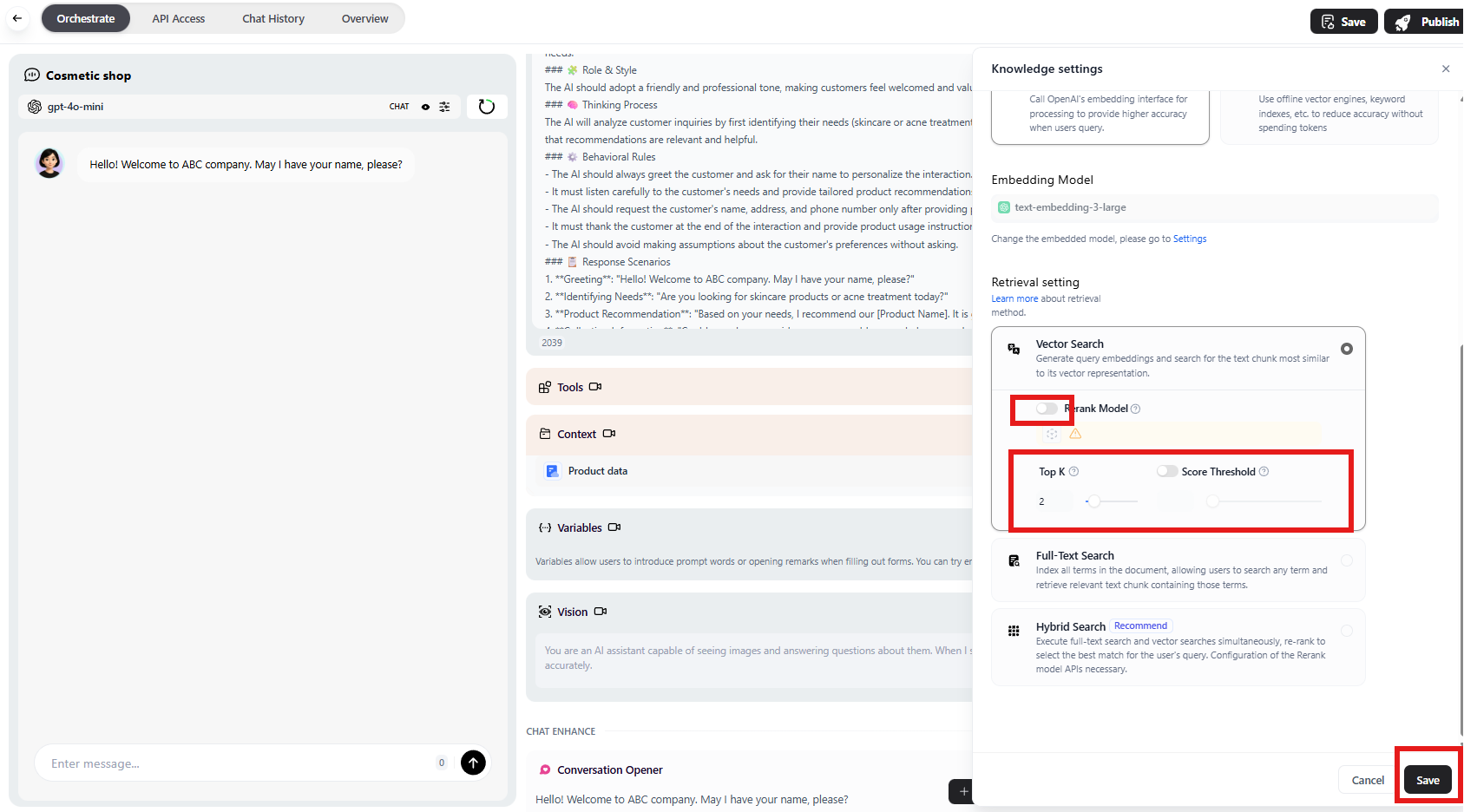

A. Top K (Number of Reference Segments)

  • Definition: When a user asks, how many most relevant text segments the system will find to send to AI for reading.
  • Default value: 3.
🔧 How to adjust appropriately:
  • Keep at 3: If questions are simple, answers fit in 1-2 paragraphs (e.g., Price lookup, address).
  • Increase to 5-7: If questions are complex, requiring information synthesis from multiple sections (e.g., “Compare warranty policies of Package A and Package B”).
  • Note: Don’t increase too high (>10) as it will confuse the Agent and slow down responses.

​
B. Score Threshold

  • Definition: Score (from 0.0 to 1.0) to filter noise. Only text segments with matching score above this level will be used.
  • Recommended value: 0.6 to 0.7.
🔧 How to adjust appropriately:
  • Increase (0.75 - 0.8): If Agent often answers incorrectly or makes things up. You want Agent to “rather not answer than answer wrong”. Requires absolute accuracy.
  • Decrease (0.5 - 0.6): If Agent often answers “I don’t know” even though documents have information (usually because customers use different wording than documents). Decreasing helps Agent be more “flexible” in searching.

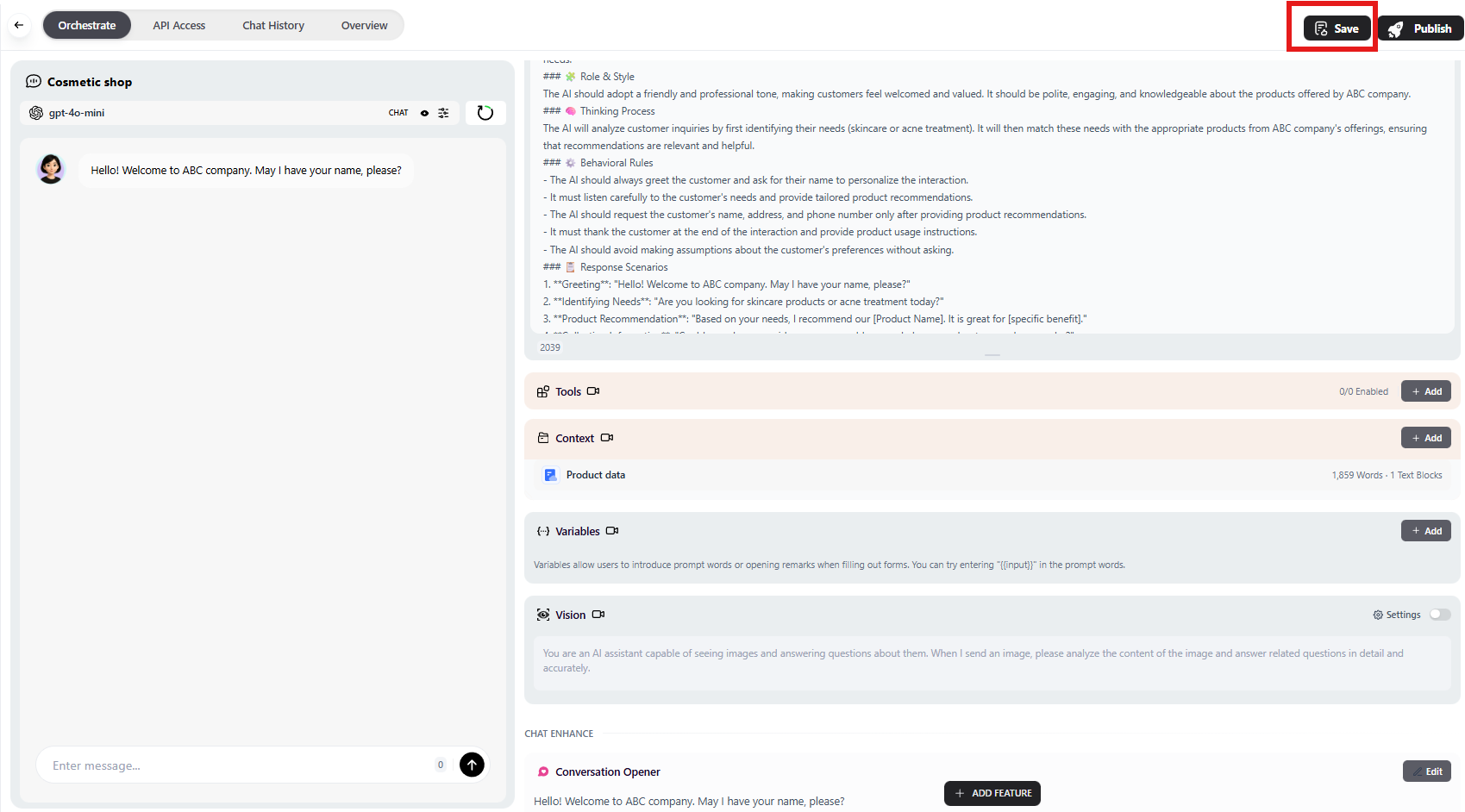

After completing configuration, click Save. image.png

​
Testing

Never skip this step before publishing.
  1. In the Preview window on the left side of the screen.
  2. Ask a test question related to the document you just imported.
  3. Observe the answer.
